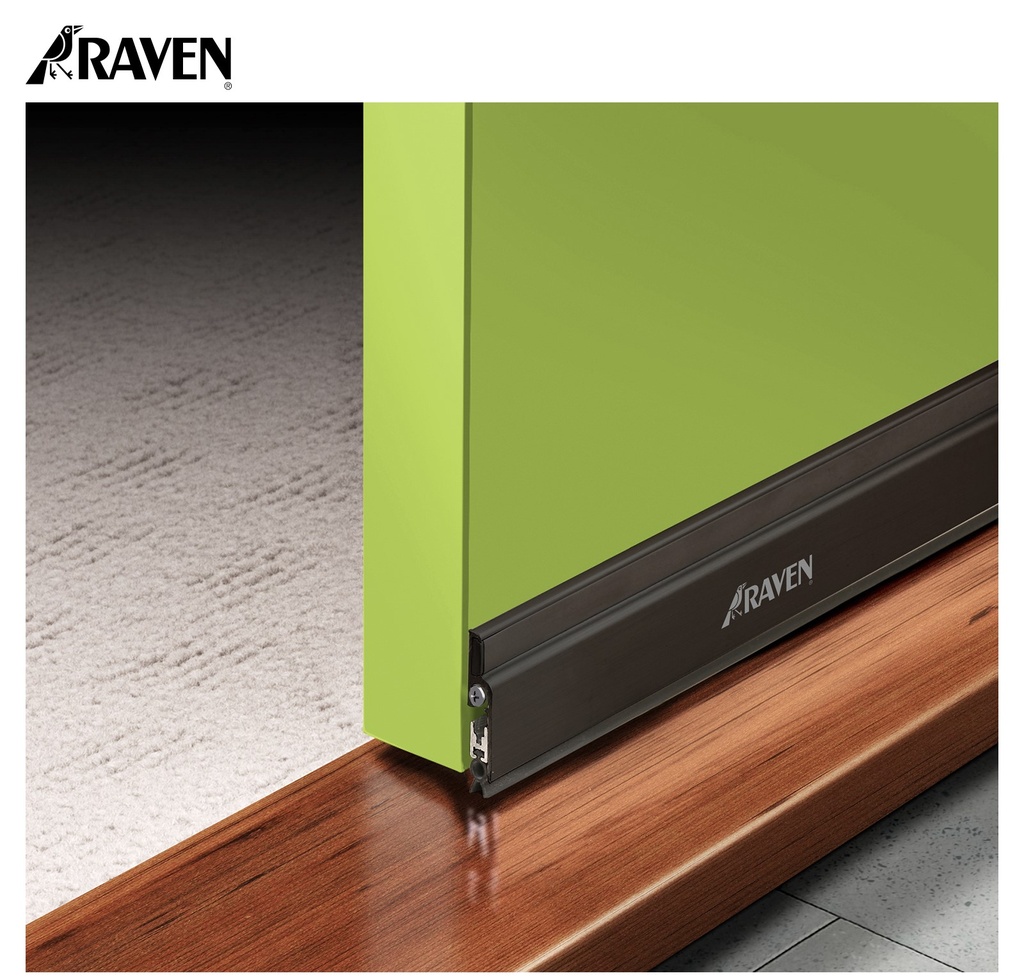

RP60, RAVEN® DOOR BOTTOM SEALS - AUTOMATIC DOOR BOTTOM SEALS
RAVEN® DOOR BOTTOM SEALS - AUTOMATIC DOOR BOTTOM SEALS, RP60, BLACK, 920 MM, HS CODE: 40169390
Choose Size : 920mm |
RP85
A refrigeration type vinyl magnetic strip in an anodised aluminium housing with concealed fixings. RP85 provides a tight seal for steel clad doors and jambs and may be used as a stop. For timber doors, a thin steel strip can be attached to the door face. The magnetic strip has sufficient closing strength that latches may not be required.
Can be used in conjunction with Raven door bottom seals and astragals.
Note: If fixing to rebated frames of single doors, specify a long backset door latch.
Location: Head and jambs of single and double butt hinged doors.
Min/Max Gap: 0mm to 4mm (user determined).
Finish: Satin clear (silver) anodised aluminium (15μm) or paint at extra cost.
Fixing: Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
Seal: Black PVC.
Sizes: Available in stock lengths.
Approvals
Acoustic AUS/NZ: NCC Spec. F5.5. UK/EU: Approved Document E. Rated to BS EN ISO 717-1.
Energy NCC Pt. 3.12.3.3 & J3.4.
